Fujian Gas Pipeline Network 福建天然气管网 is a collection of proposed, in construction, and operating pipelines in Fujian Province, China.

Location

The network runs throughout Fujian Province.

Loading map...

Network background

Fujian has built 1514 kilometers of gas pipeline by 2020, according to Fujian 14th Five Year Plan for Energy. It plans to increase the gas pipeline mileage to 2700 kilometers by 2025. [1] The major sources for the provincial pipeline net work are LNG imported through Fujian LNG terminal and West-East gas pipeline 3 sourced Central Asia countries. Three additional LNG terminals are in various stages of development, potentially adding more gas sources to the province in the near future. Fujian planned to increase its LNG receiving capacity from 3.6 million tonnes per year to 12.6 mtpa by 2025.

The provincial network developed in two phases. They are also called "Strait West Gas Pipeline Network Phase I and Phase II". Details of the two phases are described as below.

Network details

Fujian LNG Terminal Transport Pipeline 福建LNG外输管线

The pipeline is also known as "Strait West Gas Pipeline Network Phase I"(海西天然气管网一期工程).[2] It supplies natural gas to 5 major coastal cities along the pipeline, Fuzhou, Putian, Xiamen, Jinjiang and Zhangzhou, including 3 gas power stations.[3]

The pipeline runs from Fujian LNG Terminal in Xiuyu, Putian, Fujian to Cangshan/Longan, Fuzhou/Zhangzhou, Fujian. It primarily sources its natural gas from Indonesia's Donggu gas field and also receives LNG resources from 13 countries and regions along the 'Belt and Road' initiative, including Malaysia, Nigeria, and Qatar.[4]

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co.,Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[5]
  • Parent Company:
  • Capacity: 7.6 billion cubic meters per year[6]
  • Length: 356.13 km[7]
  • Diameter:
  • Status: Operating[6]
  • Start Year: 2008[6]
  • Cost:

Strait West Natural Gas Pipeline Network Phase II 海西天然气管网二期工程

Strait West Natural Gas Pipeline Network Phase II 海西天然气管网二期工程, also translated as Haixi Natural Gas Pipeline Network Phase II, is a pipeline network with segments that are operating and in construction in Fujian Province, China. It is located along the western bank of the Taiwan Strait, and inherits its name west strait from this geographical location.

The Strait West Natural Gas Pipeline Network Phase II is described as an important natural gas interconnection project in Fujian Province. It was originally estimated to have a total length of 830 kilometers and a total investment of over 10 billion RMB. The approval process took two years and three months.[8]

  • Construction for the Zhangzhou–Zhao'an Gas Pipeline segment began in 2013. The pipeline was divided into two sections for approval, from Zhangzhou to Zhangpu and from Zhangpu to Zhao'an, and the full pipeline was reportedly finished with construction and operational at the beginning of 2020.
  • Construction on the Fuzhou–Sanming Gas Pipeline began on June 28, 2021.
  • The Fuzhou–Fuding Gas Pipeline segment began operating in December, 2020.
  • Construction on the Quanzhou–Dehua Branch segment began on May 28, 2021 with an investment of 1.34 billion RMB.
Loading map...

Zhangzhou–Zhao'an Gas Pipeline 漳州—诏安段

The pipeline has been completed but has not yet been put into operation.[9]

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5][10]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Capacity:
  • Length: 182.90 km[10]
  • Diameter: 813mm[10]
  • Status: Construction[12]
  • Start year:
  • Cost: The total investment for Zhangzhou–Zhao'an Gas Pipeline and Zhangzhou–Longyan Gas Pipeline is 1.8 billion RMB.[13]

Zhangzhou–Longyan Gas Pipeline 漳州—龙岩段

The pipeline has been completed but has not yet been put into operation.[9]

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5][10]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity:
  • Length: 100.36 km[10]
  • Diameter: 813 mm[10]
  • Status: construction[14]
  • Start year:
  • Cost: The total investment for Zhangzhou–Zhao'an Gas Pipeline and Zhangzhou–Longyan Gas Pipeline is 1.8 billion RMB.[13]

Fuzhou–Sanming Gas Pipeline 福州—三明段

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity: 1.6 bcm/ year[15]
  • Length: 286.6 kilometers[15]
  • Diameter: 813 millimeters[15]
  • Status: Construction[16]
  • Start year: 2022[15]
  • Cost: 2.9 billion RMB[17]
Fuzhou-Fuding Gas Pipeline.png

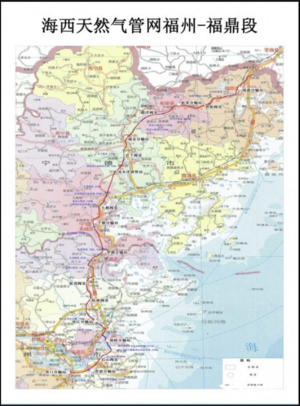

Fuzhou–Fuding Gas Pipeline 福州—福鼎段

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity:
  • Length: 256.8 kilometers[18]
  • Diameter: 813 mm
  • Status: Proposed[19]
  • Start year:
  • Cost:

Quanzhou–Dehua Branch 德化支线 (泉州—德化)

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5][20]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. ((60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity: 1.07 bcm/year[20]
  • Length: 119.12 km[20]
  • Diameter: 508 mm[20]
  • Status: Operating[20]
  • Start year: 2022[20]
  • Cost: 215 million RMB[21]

Zhangzhou LNG Connecting Gas Pipeline 漳州LNG联络线

Loading map...
  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. (60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity: 4.2 billion cubic meters per year[22]
  • Length: 77.8 kilometers[22]
  • Diameter: 1016mm[22]
  • Status: Operating[23]
  • Start year: 2024[23]
  • Cost:

Zhangzhou LNG Connecting Gas Pipeline Extension 漳州LNG联络线延伸段

Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5][24]

  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. (60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity: 4.2 billion cubic meters per year[25]
  • Length: 36 kilometers[25]
  • Diameter: 1016mm[25]
  • Status: Operating[23]
  • Start year: 2024[23]
  • Cost: 713 million RMB[25]

Fujian Fuqing LNG Export Pipeline Network 福建福清LNG外输管道

The pipeline starts at the Fujian LNG Terminal to supply gas gasified from LNG to Fuqing, Fujian. More specifically, the pipeline would begin at the first station of Lianfeng in western Lianfeng Village, Donghang, Fuqing City, and would end at at a transmission station in Jingyang Town, Fuqing City, Fuzhou City.

Loading map...
  • Operator: PetroChina Kunlun Gas Company Limited Fujian Branch (中石油昆仑燃气有限公司福建分公司)[26]
  • Owner: PetroChina Kunlun Gas Company Limited (中石油昆仑燃气有限公司)[26]
  • Parent Company: KUNLUN ENERGY COMPANY LIMITED (昆仑能源有限公司)[27]
  • Capacity: 3.39 billion cubic meters per year[28]
  • Length: 107 kilometers[28]
  • Diameter: 1016mm[28]
  • Status: Proposed[29]
  • Start year:
  • Cost:

Luoyuan-Fuding Gas Pipeline 罗源-福鼎输气管道

  • Operator: National Pipe Network Group Fujian Pipe Network Co., Ltd. (国家管网集团福建省管网有限公司)[5][30]
  • Owner: National Petroleum and Natural Gas Pipeline Network Group Co.,Ltd. (60.0002%) (国家石油天然气管网集团有限公司), Fujian Province Investment Development Group Co., Ltd.(39.9998%)(福建省投资开发集团有限责任公司)[11]
  • Parent Company:
  • Capacity: 0.49 billion cubic meters per year[31]
  • Length: 180 kilometers[31]
  • Diameter: 813mm[32]
  • Status: Construction[31]
  • Start year:
  • Cost: 1.7 billion RMB[31]

Wuyi New Area Natural Gas Pipeline 武夷新区天然气管道

  • Operator: Nanping Construction Group Co., Ltd. (南平建设集团有限公司)[33]
  • Owner: Nanping Wuyi Development Group Co.,Ltd.(90%)(南平武夷发展集团有限公司), Fujian Provincial Department of Finance(10%)(福建省财政厅)
  • Parent Company:
  • Capacity: 2 bcm/year
  • Length: 145 kilometers
  • Diameter:
  • Status: Proposed
  • Start year:
  • Cost:

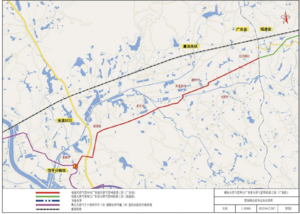

The Connecting Pipeline between Guangdong Gas Pipeline Network and Fujian Gas Pipeline Network 福建天然气管网与广东省天然气管网联通工程

The pipeline is a proposed gas pipeline between Guangdong province and Fujian province, China. The pipeline is divided into two parts: Guangdong section and the Fujian section.[34][35]

The pipeline runs from Raoping County, Chaozhou, Guangdong province, to Zhao'an County, Zhangzhou, Fujian province.[34][35]

Screenshot 2024-09-20 at 10.43.28 AM.png
Loading map...

The Connecting Pipeline between Guangdong Gas Pipeline Network and Fujian Gas Pipeline Network (Guangdong Section) 福建天然气管网与广东省天然气管网联通工程(广东段)[36]

  • Operator:
  • Owner: China Oil and Gas Pipeline Network Corporation Guangdong Pipeline Network Co., Ltd.[34]
  • Parent company:
  • Capacity: 5.57 bcm/y[34]
  • Length: 9.13 km[34]
  • Diameter: 813 mm[34]
  • Status: Proposed[34]
  • Start year:
  • Cost: 147.99 million RMB[34]
  • Financing:
  • Associated infrastructure: Huafeng Huaying LNG Export Gas Pipeline[34]

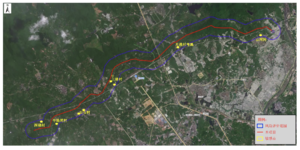

The Connecting Pipeline between Guangdong Gas Pipeline Network and Fujian Gas Pipeline Network (Fujian Section) 福建天然气管网与广东省天然气管网联通工程(福建段)

Screenshot 2024-08-20 at 10.41.08 AM.png
  • Operator:
  • Owner: China Oil and Gas Pipeline Network Corporation Fujian Pipeline Network Co., Ltd.[35]
  • Parent company:
  • Capacity: 15.5 bcm/y[35]
  • Length: 19.43 km[35]
  • Diameter: 914 mm[35]
  • Status: Proposed[37]
  • Start year:
  • Cost: 200.21 million RMB[38]
  • Financing:
  • Associated infrastructure: Zhangzhou-Zhao'an Section of Haixi Pipeline Network Phase II[35]
