Harbin-Shenyang Pipeline

This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.

Sub-articles:

FrackSwarm portal Coal terminals Coal transport and infrastructure Oil and gas pipelines LNG terminals Pipeline construction costs Methodology and data notes

Harbin-Shenyang Pipeline (哈沈输气管线) is an operating pipeline in China.

Location

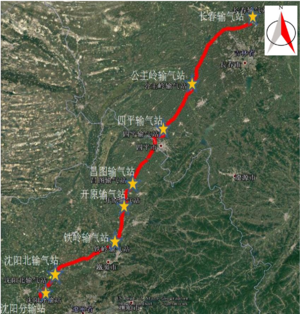

The pipeline runs from Shenyang, Liaoning, China, to Harbin, Heilongjiang, China.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":43.537589,"lon":125.097326,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":45.455285,"lon":126.588894},{"lat":44.148949,"lon":125.413804},{"lat":43.24741,"lon":124.373688},{"lat":42.202526,"lon":123.21549},{"lat":41.939341,"lon":123.009965},{"lat":41.681725,"lon":123.441572}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

Project Details

• Operating Company: PetroChina
• Parent Company: China National Petroleum Corporation
• Current Capacity:
• Length: 555 kilometers / 344.9 miles
• Status: operating (Shenyang-Changchun)
• Start Year: 2015

Background

The source of the pipeline is the West-East Gas Pipeline 2/ Changqing Gas Field/Russa-China East Line Domestic Extension. Construction between Changchun and Shenyang began in 2012 and was completed in 2015, with a design by the Design Institute of the Pipeline Bureau. The length of this part was 364.7 km (226.6 miles). It has a diameter of 1016 mm and a design pressure of 10 MPa. The part between Changchun and Harbin was not built yet. The Harbin-Shenyang Pipeline also has a two-way gas transmission function.
