Qingdao-Nanjing Pipeline 青宁输气管线（青岛－南京） is a gas pipeline operating in China.

Location

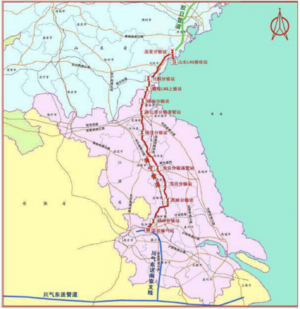

The pipeline runs between Dongjiakou Port, Qingdao (青岛市), Shandong and Nanjing (南京市), Jiangsu, China.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":34.193212,"lon":119.503656,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":35.58415,"lon":119.760056},{"lat":35.699264,"lon":119.752847},{"lat":35.092104,"lon":119.259188},{"lat":34.309948,"lon":118.96095},{"lat":33.534039,"lon":119.210369},{"lat":33.246002,"lon":119.374198},{"lat":32.906271,"lon":119.513596},{"lat":32.729708,"lon":119.486918},{"lat":32.648764,"lon":119.309361},{"lat":32.257451,"lon":119.087956}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":6,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

Project Details

Qingdao-Nanjing Pipeline 青宁输气管线（青岛－南京）

• Owner: National Petroleum and Natural Gas Pipeline Network Group Co., Ltd.
• Parent Company:
• Capacity: 7.2 bcm/year
• Length: 536 km
• Diameter: 1016 millimeters
• Status: Operating
• Start Year: 2020

Gaoyou-Tianchang Branch 高邮-天长支线

• Owner: China Sinopec Pipeline Storage and Transportation Co., Ltd.
• Parent Company:
• Capacity:
• Length: 15 km
• Diameter: 1016 mm
• Status: Operating
• Start Year: 2024

Background

The pipeline source is the Qingdao LNG Terminal. Its diameter is 457 mm and the design pressure of 6.4MPa. Construction began in June 2019 and the pipeline is expected to begin operating in October 2020.

The pipeline began operating in October 2020.

A branch of this pipeline from Gaoyou, Jiangsu to Tianchang, Anhui was also proposed but no details could be found yet.
