Shaan-Jing Pipeline

From Global Energy Monitor
This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
Sub-articles:

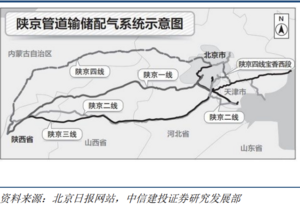

Shaan-Jing Gas Pipeline network (陕京输气管线) is an operating gas pipeline network containing four major pipelines and several branches.[1]

Location

Loading map...

Background

The pipeline is owned and operated by PetroChina.[2] The pipeline carries gas sourced in Turkmenistan, Uzbekistan and Kazakhstan.[3][4]

Project Details

Shaan-Jing Gas Pipeline 1 ( 陕京一线输气管线)

Shaan-Jing Pipelines run from Jingbian in Shaanxi province to Shanxi, then south through Hebei province to capital city Beijing.[5][6]

The pipeline is owned and operated by Beijing Huayou Gas Company. The pipeline starts from the gas processing plant in Changqing gas field, in Shaanxi province, and terminates in the Yamenkou terminal in Shijingshan district, Beijing. It supplies natural gas to Shanxi, Hebei, Beijing and Tianjin. It also supplies The Cangzhou Fertilizer Plant and Shandong Zibo area through Gang-Cang and Cang-Zi lines.[7] The length of the pipeline is 918 km (570 mi). The pipeline has a diameter of 660 mm (26 in) and designed pressure of 6.4 MPa. The annual capacity of this pipeline is after several upgradings 4 billion cubic meters of natural gas. The pipeline includes three compressor stations and three underground storage facilities.[8] The pipeline runs parallel to Shaan-Jing Gas Pipeline 2

is an operating natural gas pipeline.[9]

Loading map...
  • Operator:
  • Owner: Petrochina Beijing Gas Pipeline Co., Ltd.[10]
  • Parent Company:
  • Current capacity: 4 billion cubic meters per year
  • Proposed capacity:
  • Length: 570 miles / 918 km
  • Diameter: 660 mm[11]
  • Status: Operating
  • Start Year: 1997

Shaan-Jing Gas Pipeline 2 ( 陕京二线输气管线)[9]

This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
Sub-articles:

Shaan-Jing Gas Pipeline 2 (also known as 陕京二线输气管线) is an operating natural gas pipeline.[9] </ref>

Loading map...
  • Operator:
  • Owner: Petrochina Beijing Gas Pipeline Co., Ltd.
  • Parent Company:
  • Current Capacity: 12 billion cubic meters per year
  • Proposed Capacity:
  • Length: 581 Miles / 935 kilometers
  • Diameter:1016 mm
  • Status: Operating
  • Start Year: 2005

Yongqing-Tangshan-Qinhuangdao Pipeline 永唐秦输气管线

This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
Sub-articles:

Yongqing-Tangshan-Qinhuangdao Pipeline (永唐秦输气管线) is an operating gas pipeline in China.

It is a branch project of Shaan-Jing Gas Pipeline 2.[12] The source of the pipeline is the Tangshan LNG Terminal, Shaan-Jing Gas Pipeline 2 and Qinhuangdao-Shenyang Pipeline.[13]

The pipeline runs from Yongqing, Langfang, China to Tangshan, Hebei, China to Qinhuangdao, Hebei, China.

Loading map...
  • Operating Company:
  • Owner:Petrochina Beijing Gas Pipeline Co., Ltd.十三载供气保障 守万家用气安全, 中国网海丝频道, 2022-05-19</ref>
  • Parent Company:
  • Current Capacity: 9 bcm/years
  • Length: 312.4 km / 194.12 mi
  • Diameter:1016 mm[12]
  • Status: Operatingm[12]
  • Start Year: 2009[12]
  • Cost: 3200.33 million RMB[14]

Shaan-Jing Gas Pipeline 3 (陕京三线输气管线)[2][15]

The pipeline runs from Yulin in Shaanxi to Xishatun in Beijing and is parallel to the Shaan-Jing Gas Pipeline 2. [16]

Loading map...
  • Operator:
  • Owner:Petrochina Beijing Gas Pipeline Co., Ltd.[17]
  • Parent Company:
  • Current Capacity: 15 billion cubic meters per year
  • Proposed Capacity:
  • Length: 557 Miles / 896 kilometers
  • Diameter: 1016 mm
  • Status: Operating
  • Start Year: 2010

Shaan-Jing Gas Pipeline 4 (陕京四线输气管线) [18]

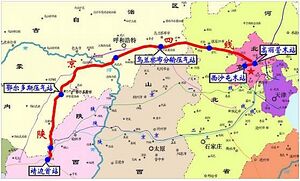

The pipeline runs from Jingbian, Shaanxi, goes across Inner Mongolia and Hebei, and ends at Gaoliying Terminal Station in Beijing.[19]

Loading map...
  • Operator:
  • Ownerr: Petrochina Beijing Gas Pipeline Co., Ltd.[20]
  • Parent Company:
  • Current Capacity: 25 billion cubic meters per year
  • Proposed Capacity:
  • Length: 692 miles / 1,114 kilometers
  • Diameter: 1219 mm
  • Status: Operating
  • Start Year: 2017

Extension

A 41-kilometer-extension (25.5 miles) of the pipeline was completed in 2008. The extension ended in east of Tongzhou District, Beijing, to secure the natural gas supply to Beijing, the capital city.

Baodi-Xianghe-Xiji gas pipeline (陕京四线支线联络线宝香西输气管线)

The pipeline is a branch line of Shaan-Jing Gas Pipeline 4, connecting Shaan-Jing Gas Pipeline 4 and Tangshan LNG terminal.[21] In October 2020 ownership of the pipeline was transferred from CNPC to PipeChina.[22]It runs from Baodi, Tianjin through Xianghe, Hebei, to Xiji, Tongzhou, Beijing. [23]

Loading map...
  • Operator:
  • Owner:Petrochina Beijing Gas Pipeline Co., Ltd.
  • Parent Company: PipeChina[22]
  • Current capacity: 17 bcm/year
  • Proposed capacity:
  • Length: 48 mi / 78 km
  • Diameter: [24]
  • Status: Operating
  • Start Year: 2016
This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.
Sub-articles:

Miyun-Mafang-Xianghe gas pipeline (陕京四线联络线密云马坊香河输气管线)

The pipeline runs from the Datang-Hexigten Coal Gasification Plant at Tangshan LNG in Miyun, Beijing to Xianghe, Langfang, Hebei.[25]

Loading map...
  • Operator:
  • Owner: Petrochina Beijing Gas Pipeline Co., Ltd.[26]
  • Parent Company: PipeChina[27]
  • Current capacity: 17 bcm/year
  • Proposed capacity:
  • Length: 48 mi / 77 km
  • Diameter: 1016 mm[26]
  • Status: Operating
  • Start Year: 2019

Shaan-Jing Gas Pipeline 4 Zhangjiakou Branches (陕京4线张家口市支线项目群)

The pipelines run around Zhangjiakou city, Hebei province. The project contains 6 gas pipeline branches. Four branches, Huai'an Branch, Huailai Branch, Xiahuayuan Branch, Ying-zhang connecting pipeline which are sourced Shaan-Jing Gas Pipeline 4, supply gas to all of the stadiums and other buildings where the Beijing Winter Olympics games was held in Zhangjiakou, Hebei on February 2022. [28] The total investment of 6 branches is 1.26 billion RMB.[29]

Loading map...
  • Owner: PipeChina Beijing Gas Pipeline Co., Ltd. 国家管网集团北京管道有限公司
  • Parent Company: PipeChina
  • Current capacity: 3.2 billion cubic meter per year
  • Proposed capacity:
  • Length: 173.7 kilometers
  • Status: Operating[30]
  • Start Year: 2021
