West-East Gas Pipeline 1

This article is part of the Global Fossil Infrastructure Tracker, a project of Global Energy Monitor.

Sub-articles:

FrackSwarm portal Coal terminals Coal transport and infrastructure Oil and gas pipelines LNG terminals Pipeline construction costs Methodology and data notes

West-East Gas Pipeline 1 西气东输一线 WEPP is an operating natural gas pipeline in China.

Location

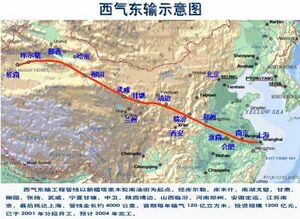

The pipeline runs from Lunnan near the Tarim gas field in Xinjiang in the west, through Gansu, Ningxia, Shaanxi, Shanxi, Henan, Anhui, Jiangsu, Zhejiang and Shanghai to its final station of Baihe Town of Shanghai in the east.

输气管道

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":31.829424,"lon":101.803469,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":41.475422,"lon":84.2161},{"lat":41.078315,"lon":95.430766},{"lat":40.560655,"lon":95.775346},{"lat":37.943141,"lon":102.571561},{"lat":37.459851,"lon":105.147203},{"lat":37.552241,"lon":105.669839},{"lat":37.420167,"lon":106.61435},{"lat":37.655418,"lon":108.926356},{"lat":36.307903,"lon":113.18778},{"lat":34.829377,"lon":113.718787},{"lat":32.523638,"lon":117.018852},{"lat":32.201279,"lon":118.891525},{"lat":31.25252,"lon":121.139422}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":3,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

Project Details

• Operator: PetroChina West–East Gas Pipeline Company
• Parent Company: China National Petroleum Corporation
• Current Capacity: 17 billion cubic meters per year
• Length: 2,485 miles / 4,000 kilometers
• Diameter: 1016 mm
• Status: Operating
• Start Year: 2005
• Finance: 140000 million RMB

Background

The construction of the West–East Gas Pipeline started in 2002. The pipeline was put into trial operation on 1 October 2004, and the full commercial supply of natural gas commenced on 1 January 2005. The pipeline is owned and operated by PetroChina West–East Gas Pipeline Company, a subsidiary of PetroChina. Originally, it was agreed that PetroChina would have owned 50% of the pipeline, while Royal Dutch Shell, Gazprom, and ExxonMobil had been slated to hold 15% each, and Sinopec 5%. However, in August 2004, the Board of Directors of PetroChina announced that following good faith discussions with all parties to the Joint Venture Framework Agreement, the parties had not been able to reach an agreement, and the joint venture framework agreement was terminated.

Technical features

The 4,000-km (2,485-mi) pipeline runs from Lunnan in Xinjiang to Shanghai. The pipeline passes through 66 cities in 10 provinces. Natural gas transported by the pipeline is used for electricity production in the Yangtze River Delta area. There is a plan to replace coal with gas in Shanghai by 2010. The capacity of the pipeline was originally 12 billion cubic meters of natural gas annually. The cost of the pipeline was US$5.7 billion. By the end of 2007, the capacity was planned to be upgraded to 17 billion cubic meters. For this purpose, ten new gas compressor stations will be built and eight existing stations are to be upgraded.

Connections

The West–East Gas Pipeline is connected to the Shaan-Jing pipeline by three branch pipelines. The 886-km (551-mi) Ji-Ning branch between the Qingshan Distributing Station and the Anping County Distributing Station became operational on 30 December 2005.

Source of supply

The pipeline is supplied from the Tarim Basin gas fields in Xinjiang province. The Changqing gas field in Shaanxi province is a secondary gas source. In the future, the planned Kazakhstan-China gas pipeline will be connected to the West–East Gas Pipeline.

Starting from 15 September 2009, the pipeline is also supplied with coalbed methane from the Qinshui Basin in Shanxi.

Branch

West-East Gas Pipeline 1 Yan'an Branch Gas Pipeline 西气东输一线延安支线输气管道

The pipeline runs from Yongping Town, Yanchuan County, Yan'an to Qinghuabian Town, Baota District, Yan'an.

• Operator:
• Owner: West To East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd.
• Parent company:
• Length: 52.893 km
• Diameter: 406.4 mm
• Status: Operating
• Start year: 2022
• Cost: 395.4469 million RMB
• Financing:
• Associated infrastructure: West-East Gas Pipeline 1

Nanjing-Wuhu gas pipeline 南芜输气管线（南京-芜湖）

It is a operating natural gas pipeline in China. The pipeline's source is the West-East Gas Pipeline I.

The pipeline runs from Nanjing, Jiangsu province to Wuhu, Anhui province.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":31.8,"lon":118.4,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":32.213577,"lon":119.093929},{"lat":31.414052,"lon":117.724665}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Parent Company: PipeChina
• Current Capacity: 1.67 billion cubic meters per year
• Length: 130.2 kilometers / 80.9 miles
• Status: Operating
• Start Year: 2004

Lanzhou-Yinchuan connecting Pipeline 西气东输兰银支线

It is an operating gas pipeline in China. The pipeline source is the Sebei 1 Gas Field.

The pipeline runs from Hekou, Lanzhou, Gansu to Yinchuan, Ningxia

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.086828,"lon":105.003775,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":36.105148,"lon":103.583904},{"lat":37.455732,"lon":104.51256},{"lat":38.21689,"lon":105.968445},{"lat":38.456894,"lon":106.110757}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":6,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator: CNPC (China National Petroleum Corporation)
• Parent Company:
• Current capacity: 3.5 bcm/year
• Proposed capacity:
• Diameter: 1,016 mm
• Length: 283.97 mi / 457 km
• Status: Operating
• Start Year: 2007

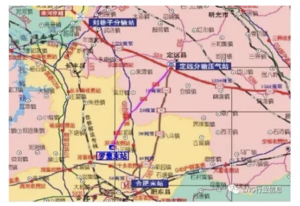

Dingyuan-Hefei Parallel Line 定远-合肥复线

It is a natural gas pipeline under construction in China since 2018. Dingyuan-Hefei natural gas pipeline is a branch of West-East Gas Pipeline. It was commissioned in 2003. Due to rapid growth of gas demand, a parallel pipeline began construction in 2018. The pipeline was commissioned in October 2019. The source for both pipelines is the West-East Gas Pipeline 1.

The pipeline runs from Dingyuan, Chuzhou to Luoji, Hefei, Anhui.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":32.251375,"lon":117.583062,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":32.490193,"lon":117.643907},{"lat":32.111546,"lon":117.240548}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":9,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Parent Company:
• Current Capacity: 3.50 billion cubic meters per year
• Length: 68.9 kilometers / 42.81 miles
• Status: Operating
• Start Year: 2019

Yunan Branch (Xuedian-Zhumadian) 西气东输一线豫南支线（薛店-驻马店）

It is an operating gas pipeline in China. It runs from Xuedian Townm, Xinzheng, Zhengzhou, Henan to Zhumadian, Henan, passing through Xinzheng, Changge, Xuchang, Luohe.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":33.9,"lon":113.8,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":34.507555,"lon":113.794208},{"lat":34.37084,"lon":113.74662},{"lat":34.241412,"lon":113.763652},{"lat":34.062864,"lon":113.889436},{"lat":33.614549,"lon":114.034469},{"lat":33.011681,"lon":113.966949}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator:
• Owner:
• Parent Company:
• Current capacity: 0.47 bcm/year
• Proposed capacity:
• Diameter:
• Length: 200 km
• Status: Operating
• Start Year: 2005

Changqing-Yinchuan Pipeline 西气东输长宁支线

It is an operating natural gas pipeline in China. The pipeline source is the Changqing Gas Field.

The pipeline runs from Jingbian, Changqing, Shaanxi to Yinchuan, Yinchuan, Ningxia, China.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.75568,"lon":107.677784,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.456894,"lon":106.110757},{"lat":38.274706,"lon":106.266118},{"lat":38.098539,"lon":106.342327},{"lat":38.121103,"lon":106.830367},{"lat":37.799834,"lon":107.406995},{"lat":37.655418,"lon":108.926356}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":6,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator: PetroChina
• Parent Company: China National Petroleum Corporation
• Current Capacity: 0.62 bcm/year
• Length: 291.00 kilometers / 180.82 miles
• Status: Operating
• Start Year: 1998

Donghai Branch 西气东输东海支线

• Operator: China Petroleum Pipeline Natural Gas Investment Company （中国石油管道天然气投资公司）

• Owner:
• Parent company:
• Capacity: 0.11 billion cubic meters per year
• Length: 31 kilometers
• Diameter: 323.8 mm
• Status: Operating
• Start year: 2017
• Cost: 200 million RMB

Lianshui Gas Pipeline 西气东输涟水支线

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":false,"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator: Lianshui Shenran Xinxingwang Gas Co., Ltd.(涟水深燃新星旺燃气有限公司)
• Owner: Nanjing Xinxingwang Gas Co. ,Ltd.(Major owner 65%) (南京新星旺燃气有限公司)
• Parent company:
• Capacity: 0.6 billion cubic meters per year
• Length: 53 kilometers
• Diameter: 323.8 mm
• Status: Operating
• Start year:
• Cost: 200 million RMB

Jiangdu-Rudong Gas Pipeline 西气东输江都-如东天然气管道

• Operator: West To East Gas Transmission Branch of National Petroleum Pipeline Network Group Co., Ltd. (国家石油天然气管网集团西气东输分公司)
• Owner: National Petroleum and Natural Gas Pipeline Network Group Co., Ltd (国家石油天然气管网集团有限公司)
• Parent company:
• Capacity: 13.50 billion cubic meters per year
• Length: 276.10 kilometers
• Diameter: 1016 mm
• Status: Operating
• Start year: 2011
• Cost:

Articles and resources

External articles

Wikipedia also has an article on West-East Gas Pipeline (West-East Gas Pipeline). This article may use content from the Wikipedia article under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported License].
