Yulin-Jinan Pipeline 榆济管网 consists of three gas pipelines: the Puyang-Jinan Gas Pipeline, the Anping-Jinan Gas Pipeline, and the Puyang-Jinan Gas Pipeline. The main line, the Yuli-Jinan Pipeline, was put into operation in October 2010.

Location

The three pipelines run from different gas sources in Shaanxi, Henan and Hebei Provinces to Jinan, Shandong province.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.427645,"lon":113.60016,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.276825,"lon":109.543413},{"lat":37.979558,"lon":111.000639},{"lat":37.308015,"lon":112.289013},{"lat":36.389581,"lon":113.244874},{"lat":36.007301,"lon":114.352048},{"lat":35.728449,"lon":115.207864},{"lat":36.283801,"lon":115.70789},{"lat":36.936466,"lon":116.82381}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":35.732924,"lon":115.23477},{"lat":36.283801,"lon":115.70789},{"lat":36.936466,"lon":116.82381}]},{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.283375,"lon":115.447451},{"lat":36.936466,"lon":116.82381}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

Project Details

Puyang-Jinan Gas Pipeline 榆济输气管线（榆林-济南）

Yulin-Jinan Gas Pipeline 榆济输气管线（榆林-济南）is an operating gas pipeline in China.

The source of the pipeline is Daniudi Gas Field. The pipeline is under upgrading construction, expecting finishing in October 2020. The upgrade will add new capacity of one million cube meters per day to the pipeline. The Tianjin LNG, Qingdao LNG and Ordos-Anping-Cangzhou Gas Pipeline are also added as the sources of the pipeline.

榆林-济南输气管道起点为榆林首站，终点为宣章屯输气站。沿线途经4省、8地市、23县（区）。

管线全长997.23km，设计年输量30亿方/年。主干线全长911.62km，其中：榆林-南乐段长718.57km，设计压力10MPa，管径为Φ711×12.5/14.2/16/20mm，材质为X65，于2010年10月投产；南乐-宣章段长193.05km，设计压力8MPa，管径为Φ610×8.8/10/12.5/16mm，材质为X60，于2009年11月投产。支线全长85.61km,其中：南乐-清丰支线长29.69km，管径为Φ610×10mm，材质为X60；清丰-柳屯长5.38km，设计压力3.9MPa，管径为Φ508×7.1mm，材质为L390；榆麻支线长50.54km，设计压力4.0MPa，管径Φ273。

管线沿线共设置15场站，40座阀室，其中：陕西段160.49公里，沿线设置3座输气场站及5座阀室；山西段462.75公里，沿线设置5座输气场站及21座阀室；河南段202.79公里，沿线设置4座输气场站及8座阀室；山东段171.20公里，沿线设置3座输气场站及6座阀室。

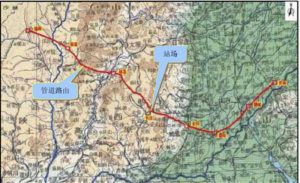

The gas pipeline runs from Xiqinhe Town, Yulin, Shannxi, China to Xuanzhangtun, Jinan, Shandong, China.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.427645,"lon":113.60016,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.276825,"lon":109.543413},{"lat":37.979558,"lon":111.000639},{"lat":37.308015,"lon":112.289013},{"lat":36.389581,"lon":113.244874},{"lat":36.007301,"lon":114.352048},{"lat":35.728449,"lon":115.207864},{"lat":36.283801,"lon":115.70789},{"lat":36.936466,"lon":116.82381}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":5,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operating Company: Sinopec Yulin-Ji Pipeline Co., Ltd. 中石化榆济管道有限责任公司
• Parent Company: Sinopec
• Current Capacity: 3 bcm/years
• Length: 911 km / 566.07 mi
• Status: Operating
• Start Year: 2010

Puyang-Jinan Gas Pipeline 中济输气管线（濮阳-济南）

In October 2020, ownership of the pipeline was transferred from Sinopec to PipeChina.

The pipeline runs from Puyang, Henan to Jinan, Shandong.

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":36.4,"lon":116,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":35.732924,"lon":115.23477},{"lat":36.936466,"lon":116.82381}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator:
• Parent Company: PipeChina
• Current capacity: 0.4 bcm/year
• Proposed capacity:
• Length: 172.7 mi / 278 km
• Status: Operating
• Start Year: 1999

Anping-Jinan Gas Pipeline 安济输气管线（安平-济南）

Anping-Jinan Gas Pipeline 安济输气管线（安平-济南）) is an operating natural gas pipeline in China.

The pipeline runs from Anping, Hengshui, Hebei to Jinan, Shandong, China.

　　2006年5月10日，由中国石化投资建设的安平—济南天然气管道顺利建成投产试运行。自此，鄂尔多斯天然气如期进入山东天然气管网。

　　安平—济南管道工程建设项目主要用于接收通过陕京二线转输的中国石化鄂尔多斯天然气。该管道自河北安平经衡水、山东德州输送到济南原中济线末站，全长244.96公里，年设计输气量30亿立方米，投资8亿余元。

　　工程由胜利设计院设计，2004年12月开工建设。中原油建、中原建工、河南油建、江汉油建、江苏油建等5家管道施工队伍，5家管道防腐厂，5家X射线检测单位，4家补口队伍、2家监理单位参与建设、监理。

　　安平—济南天然气管道共进行公路穿越101处，铁路穿越2处，河流穿越51处。管道施工点多、线长、面广，管线涉及2省3市13县（区）百余个自然村，穿越牵涉到公路、铁路、水利等多个部门，现场施工困难，工农关系复杂，协调难度大。

Loading map...

{"type":"ROADMAP","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"mappingservice":"googlemaps3","width":"400px","height":"300px","centre":{"text":"","title":"","link":"","lat":37.5,"lon":116.2,"icon":""},"title":"","label":"","icon":"","lines":[{"text":"","title":"","link":"","strokeColor":"#FF0000","strokeOpacity":"1","strokeWeight":"2","pos":[{"lat":38.283375,"lon":115.447451},{"lat":36.936466,"lon":116.82381}]}],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":7,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"locations":[]}

• Operator:
• Parent Company: China National Petroleum Corporation
• Current capacity: 3 bcm/year
• Proposed capacity:
• Length: 155 mi / 250 km
• Status: Operating
• Start Year: 2005
